Managed Resources

By default the Carts component in the sample application uses a DynamoDB local instance running as a pod in the EKS cluster called carts-dynamodb. In this section of the lab, we'll provision an Amazon DynamoDB cloud based table for our application using Crossplane managed resources and point the Carts deployment to use the newly provisioned DynamoDB table instead of the local copy.

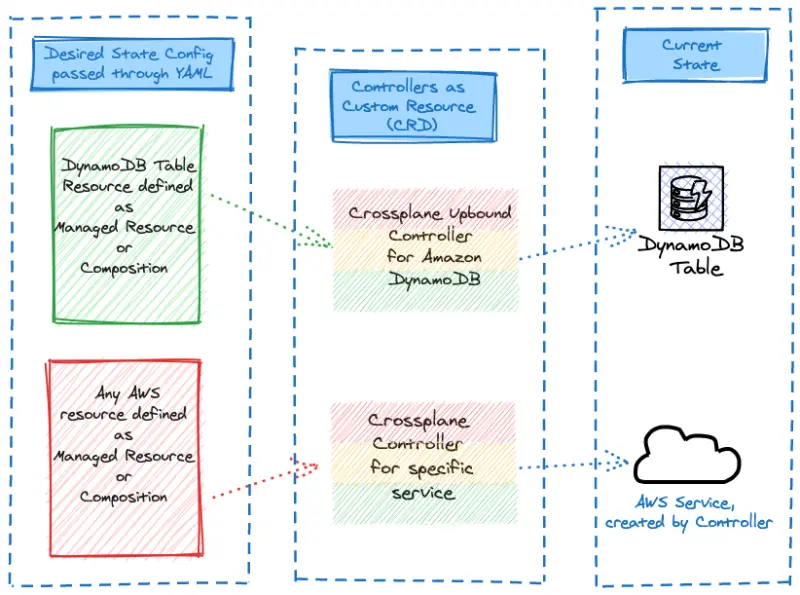

Crossplane reconciler concept

The AWS Java SDK in the Carts component is able to use IAM Roles to interact with AWS services which means that we do not need to pass credentials, thus reducing the attack surface. In the EKS context, IRSA allows us to define per pod IAM Roles for applications to consume. To leverage IRSA, we first need to:

  • Create a Kubernetes Service Account in the Carts namespace
  • Create an IAM Policy with necessary DynamoDB permissions
  • Create an IAM Role in AWS with the above permissions
  • Map the Service Account to use the IAM role using Annotations in the Service Account definition.

Fortunately, we have a handy one-liner to help with this process. Run the below:

~$eksctl create iamserviceaccount --name carts-crossplane \
--namespace carts --cluster $EKS_CLUSTER_NAME \
--role-name ${EKS_CLUSTER_NAME}-carts-crossplane \
--attach-policy-arn $DYNAMODB_POLICY_ARN --approve

2023-10-30 12:45:17 [i]  1 iamserviceaccount (carts/carts-crossplane) was included (based on the include/exclude rules)
2023-10-30 12:45:17 [!]  serviceaccounts that exist in Kubernetes will be excluded, use --override-existing-serviceaccounts to override
2023-10-30 12:45:17 [i]  1 task: {
    2 sequential sub-tasks: {
        create IAM role for serviceaccount "carts/carts-crossplan",
        create serviceaccount "carts/carts-crossplane",
    } }2023-10-30 12:45:17 [i]  building iamserviceaccount stack "eksctl-eks-workshop-addon-iamserviceaccount-carts-carts-crossplane"
2023-10-30 12:45:18 [i]  deploying stack "eksctl-eks-workshop-addon-iamserviceaccount-carts-carts-crossplane"
2023-10-30 12:45:18 [i]  waiting for CloudFormation stack "eksctl-eks-workshop-addon-iamserviceaccount-carts-carts-crossplane"

eksctl provisions a CloudFormation stack to help manage these resources which can be seen in the output above.

To learn more about how IRSA works, go here.


Now, let's explore how we'll create the DynamoDB table via a Crossplane managed resource manifest

~/environment/eks-workshop/modules/automation/controlplanes/crossplane/managed/table.yaml
apiVersion: dynamodb.aws.upbound.io/v1beta1
kind: Table
metadata:
name: "${EKS_CLUSTER_NAME}-carts-crossplane"
labels:
testing.upbound.io/example-name: dynamodb
annotations:
crossplane.io/external-name: "${EKS_CLUSTER_NAME}-carts-crossplane"
spec:
forProvider:
attribute:
- name: id
type: S
- name: customerId
type: S
hashKey: id
billingMode: PAY_PER_REQUEST
globalSecondaryIndex:
- hashKey: customerId
name: idx_global_customerId
projectionType: ALL
region: ''
tags:
namespace: carts
providerConfigRef:
name: aws-provider-config

Finally, we can create the configuration for the DynamoDB itself with a dynamodb.aws.upbound.io resource.

~$kubectl kustomize ~/environment/eks-workshop/modules/automation/controlplanes/crossplane/managed \
| envsubst | kubectl apply -f-
table.dynamodb.aws.upbound.io/eks-workshop-carts-crossplane created
~$kubectl wait tables.dynamodb.aws.upbound.io ${EKS_CLUSTER_NAME}-carts-crossplane \
--for=condition=Ready --timeout=5m

It takes some time to provision the AWS managed services, in the case of DynamoDB up to 2 minutes. Crossplane will report the status of the reconciliation in the status field of the Kubernetes custom resources.

~$kubectl get tables.dynamodb.aws.upbound.io
NAME                                        READY  SYNCED   EXTERNAL-NAME                   AGE
eks-workshop-carts-crossplane               True   True     eks-workshop-carts-crossplane   6s

When new resources are created or updated, application configurations also need to be updated to use these new resources. Update the application to use the DynamoDB endpoint:

~$kubectl kustomize ~/environment/eks-workshop/modules/automation/controlplanes/crossplane/application \
| envsubst | kubectl apply -f-
namespace/carts unchanged
serviceaccount/carts unchanged
configmap/carts unchanged
configmap/carts-crossplane created
service/carts unchanged
service/carts-dynamodb unchanged
deployment.apps/carts configured
deployment.apps/carts-dynamodb unchanged
~$kubectl rollout status -n carts deployment/carts --timeout=2m
deployment "carts" successfully rolled out

Now, how do we know that the application is working with the new DynamoDB table?

An NLB has been created to expose the sample application for testing, allowing us to directly interact with the application through the browser:

~$kubectl get service -n ui ui-nlb -o jsonpath="{.status.loadBalancer.ingress[*].hostname}{'\n'}"
k8s-ui-uinlb-a9797f0f61.elb.us-west-2.amazonaws.com
info

Please note that the actual endpoint will be different when you run this command as a new Network Load Balancer endpoint will be provisioned.

To wait until the load balancer has finished provisioning you can run this command:

~$wait-for-lb $(kubectl get service -n ui ui-nlb -o jsonpath="{.status.loadBalancer.ingress[*].hostname}{'\n'}")

Once the load balancer is provisioned you can access it by pasting the URL in your web browser. You will see the UI from the web store displayed and will be able to navigate around the site as a user.

http://k8s-ui-uinlb-a9797f0f61.elb.us-west-2.amazonaws.com

To verify that the Carts module is in fact using the DynamoDB table we just provisioned, try adding a few items to the cart.

Cart screenshot

And to check if items are in the DynamoDB table as well, run

~$aws dynamodb scan --table-name "${EKS_CLUSTER_NAME}-carts-crossplane" \
--query 'Items[].{itemId:itemId,Price:unitPrice}' --output text
PRICE   795
ITEMID  510a0d7e-8e83-4193-b483-e27e09ddc34d
PRICE   385
ITEMID  6d62d909-f957-430e-8689-b5129c0bb75e
PRICE   50
ITEMID  a0a4f044-b040-410d-8ead-4de0446aec7e

Congratulations! You've successfully created AWS Resources without leaving the confines of the Kubernetes API!
