Policy management with Kyverno

Before you start

Prepare your environment for this section:

~$prepare-environment security/kyverno

This will make the following changes to your lab environment:

Install the following Kubernetes addons in the EKS cluster:

  • Kyverno Policy Manager
  • Kyverno Policies
  • Policy Reporter

You can view the Terraform that applies these changes here.

As containers are largely adopted in production environments, DevOps, Security, and Platform teams need a solution to effectively collaborate and manage Governance and Policy-as-Code (PaC). This ensures that all different teams are able to have the same source of truth in what regards to security, as well as use the same baseline "language" when describing their individual needs.

Kubernetes by its nature is meant to be a tool to build on and orchestrate, this means that out of the box it lacks pre-defined guardrails. In order to give builders a way to control security Kubernetes provides (starting on version 1.23) Pod Security Admission (PSA), a built-in admission controller that implements the security controls outlined in the Pod Security Standards (PSS), enabled by default in Amazon Elastic Kubernetes Service (EKS).

What is Kyverno

Kyverno (Greek for “govern”) is a policy engine designed specifically for Kubernetes. It is a Cloud Native Computing Foundation (CNCF) project allowing teams to collaborate and enforce Policy-as-Code.

The Kyverno policy engine integrates with the Kubernetes API server as Dynamic Admission Controller, allowing policies to mutate and validate inbound Kubernetes API requests, thus ensuring compliance with the defined rules prior to the data being persisted and ultimately applied into the cluster.

Kyverno allows for declarative Kubernetes resources written in YAML, with no new policy language to learn, and results are available as Kubernetes resources and as events.

Kyverno policies can be used to validate, mutate, and generate resource configurations, and also validate image signatures and attestations, providing all the necessary building blocks for a complete software supply chain security standards enforcement.

How Kyverno Works

As mentioned above, Kyverno runs as a Dynamic Admission Controller in an Kubernetes Cluster. Kyverno receives validating and mutating admission webhook HTTP callbacks from the Kubernetes API server and applies matching policies to return results that enforce admission policies or reject requests. It can also be used to Audit the requests and to monitor the Security posture of the environment before enforcing.

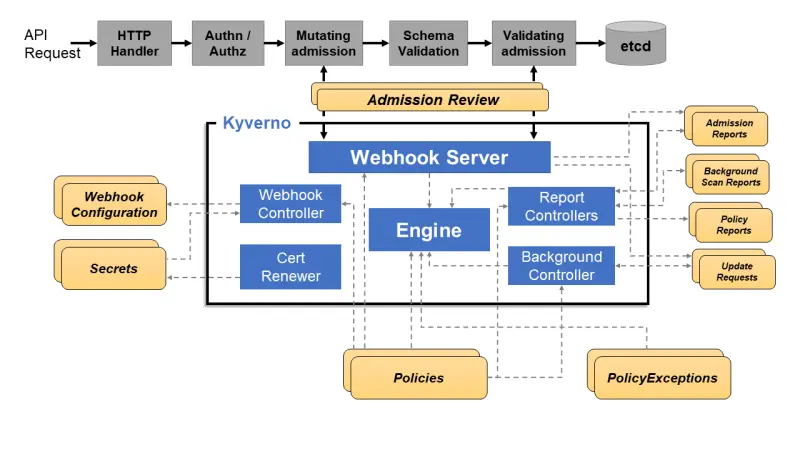

The diagram below shows the high-level logical architecture of Kyverno.


The two major components are the Webhook Server & the Webhook Controller. The Webhook Server handles incoming AdmissionReview requests from the Kubernetes API server and sends them to the Engine for processing. It is dynamically configured by the Webhook Controller which watches the installed policies and modifies the webhooks to request only the resources matched by those policies.

Before proceding with the labs, validate the Kyverno resources provisioned by the prepare-environment script.

~$kubectl -n kyverno get all
NAME                                                           READY   STATUS      RESTARTS   AGE
pod/kyverno-admission-controller-594c99487b-wpnsr              1/1     Running     0          8m15s
pod/kyverno-background-controller-7547578799-ltg7f             1/1     Running     0          8m15s
pod/kyverno-cleanup-admission-reports-28314690-6vjn4           0/1     Completed   0          3m20s
pod/kyverno-cleanup-cluster-admission-reports-28314690-2jjht   0/1     Completed   0          3m20s
pod/kyverno-cleanup-controller-79575cdb59-mlbz2                1/1     Running     0          8m15s
pod/kyverno-reports-controller-8668db7759-zxjdh                1/1     Running     0          8m15s
pod/policy-reporter-57f7dfc766-n48qk                           1/1     Running     0          7m53s
NAME                                            TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/kyverno-background-controller-metrics   ClusterIP    <none>        8000/TCP   8m16s
service/kyverno-cleanup-controller              ClusterIP    <none>        443/TCP    8m16s
service/kyverno-cleanup-controller-metrics      ClusterIP    <none>        8000/TCP   8m16s
service/kyverno-reports-controller-metrics      ClusterIP    <none>        8000/TCP   8m16s
service/kyverno-svc                             ClusterIP   <none>        443/TCP    8m16s
service/kyverno-svc-metrics                     ClusterIP    <none>        8000/TCP   8m16s
service/policy-reporter                         ClusterIP   <none>        8080/TCP   7m53s
NAME                                            READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/kyverno-admission-controller    1/1     1            1           8m16s
deployment.apps/kyverno-background-controller   1/1     1            1           8m16s
deployment.apps/kyverno-cleanup-controller      1/1     1            1           8m16s
deployment.apps/kyverno-reports-controller      1/1     1            1           8m16s
deployment.apps/policy-reporter                 1/1     1            1           7m53s
NAME                                                       DESIRED   CURRENT   READY   AGE
replicaset.apps/kyverno-admission-controller-594c99487b    1         1         1       8m16s
replicaset.apps/kyverno-background-controller-7547578799   1         1         1       8m16s
replicaset.apps/kyverno-cleanup-controller-79575cdb59      1         1         1       8m16s
replicaset.apps/kyverno-reports-controller-8668db7759      1         1         1       8m16s
replicaset.apps/policy-reporter-57f7dfc766                 1         1         1       7m53s
NAME                                                      SCHEDULE       SUSPEND   ACTIVE   LAST SCHEDULE   AGE
cronjob.batch/kyverno-cleanup-admission-reports           */10 * * * *   False     0        3m20s           8m16s
cronjob.batch/kyverno-cleanup-cluster-admission-reports   */10 * * * *   False     0        3m20s           8m16s
NAME                                                           COMPLETIONS   DURATION   AGE
job.batch/kyverno-cleanup-admission-reports-28314690           1/1           13s        3m20s
job.batch/kyverno-cleanup-cluster-admission-reports-28314690   1/1           10s        3m20s
