Deploying an application

We have successfully configured Argo CD on our cluster so now we can deploy an application. To demonstrate the difference between a GitOps-based delivery of an application and other methods, we'll migrate the UI component of the sample application which is currently using the kubectl apply -k approach to the new Argo CD deployment approach.

First let's remove the existing UI component so we can replace it:

~$kubectl delete -k ~/environment/eks-workshop/base-application/ui --ignore-not-found=true

namespace "ui" deleted

serviceaccount "ui" deleted

configmap "ui" deleted

service "ui" deleted

deployment.apps "ui" deleted

Now, let's get into the cloned Git repository and start creating our GitOps configuration. Copy the existing kustomize configuration for the UI service:

~$cp -R ~/environment/eks-workshop/base-application/ui/* ~/environment/argocd/apps

Your Git directory should now look something like this which you can validate by running tree ~/environment/argocd:

.
└── apps
    ├── configMap.yaml
    ├── deployment.yaml
    ├── kustomization.yaml
    ├── namespace.yaml
    ├── serviceAccount.yaml
    └── service.yaml

1 directory, 6 files

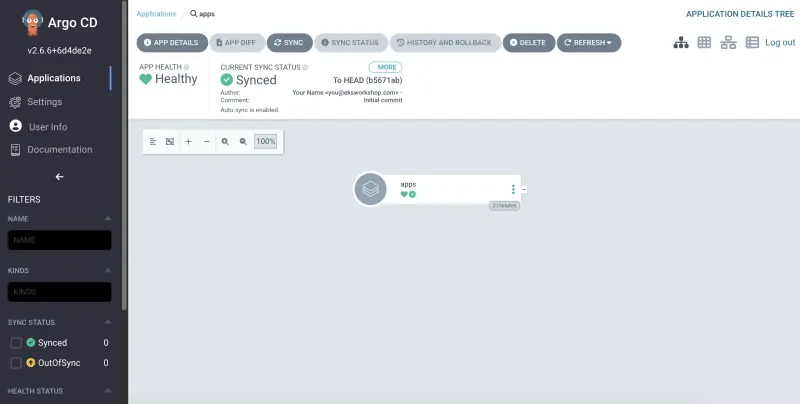

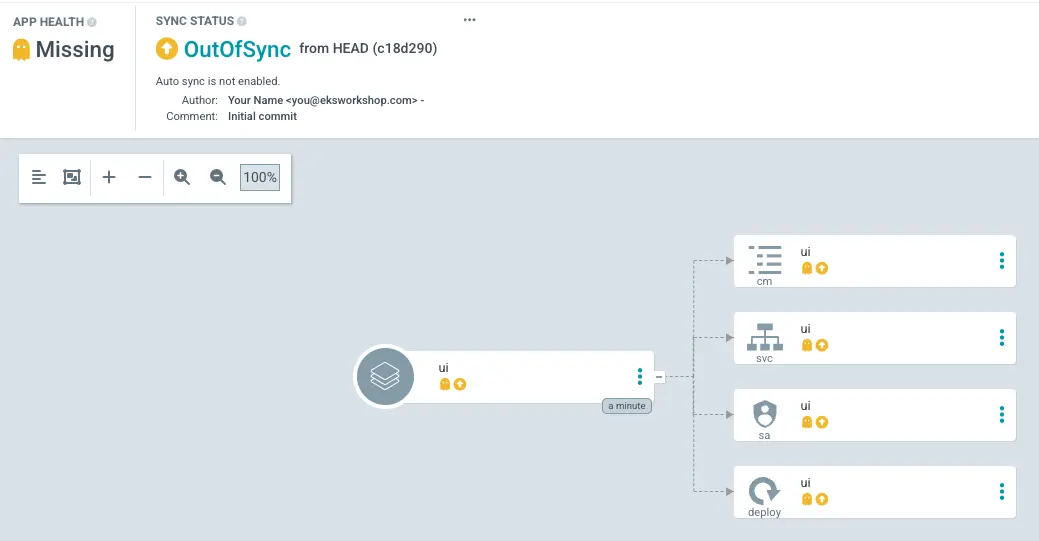

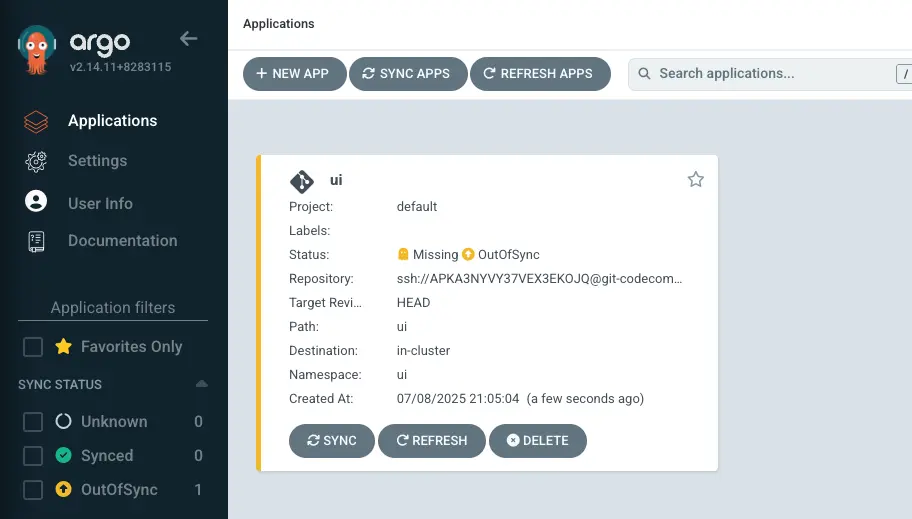

Open the Argo CD UI and navigate to the apps application.

Finally we can push our configuration to the Git repository:

~$git -C ~/environment/argocd add .

~$git -C ~/environment/argocd commit -am "Adding the UI service"

~$git -C ~/environment/argocd push

Click Refresh and Sync in ArgoCD UI or use argocd CLI to Sync the application:

~$argocd app sync apps

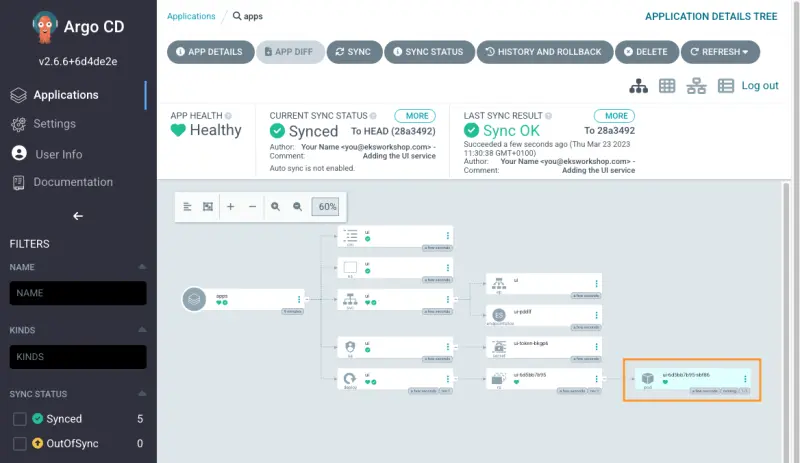

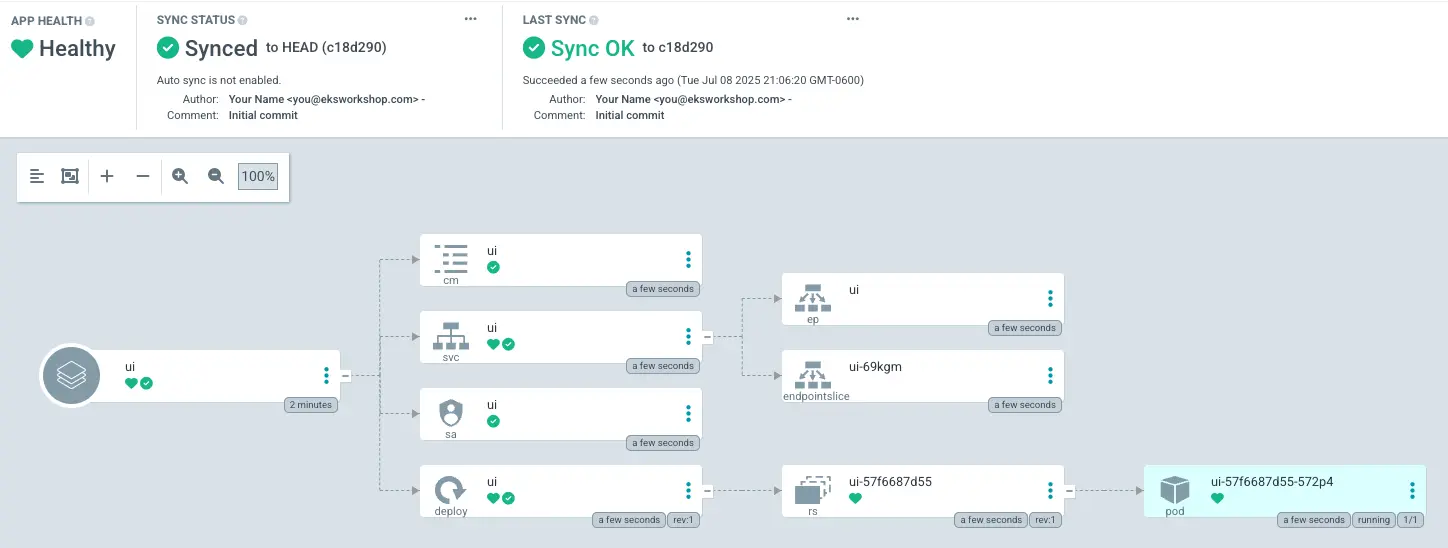

After a short period of time, the application should be in Synced state and the resources should be deployed, the UI should look like this:

That shows that Argo CD created the basic kustomization, and that it's in sync with the cluster.

We've now successfully migrated the UI component to deploy using Argo CD, and any further changes pushed to the Git repository will be automatically reconciled to our EKS cluster.

You should now have all the resources related to the UI services deployed. To verify, run the following commands:

~$kubectl get deployment -n ui ui

NAME   READY   UP-TO-DATE   AVAILABLE   AGE

ui     1/1     1            1           61s

~$kubectl get pod -n ui

NAME                 READY   STATUS   RESTARTS   AGE

ui-6d5bb7b95-rjfxd   1/1     Running  0          62s
