Creating the Ingress

Let's create an Ingress resource with the following manifest:

~/environment/eks-workshop/modules/exposing/ingress/creating-ingress/ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ui
  namespace: ui
  annotations:
    alb.ingress.kubernetes.io/scheme: internet-facing
    alb.ingress.kubernetes.io/target-type: ip
    alb.ingress.kubernetes.io/healthcheck-path: /actuator/health/liveness
spec:
  ingressClassName: alb
  rules:
    - http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: ui
                port:
                  number: 80

This will cause the AWS Load Balancer Controller to provision an Application Load Balancer and configure it to route traffic to the Pods for the ui application.

~$kubectl apply -k ~/environment/eks-workshop/modules/exposing/ingress/creating-ingress
Let's inspect the Ingress object created:
~$kubectl get ingress ui -n ui
NAME   CLASS   HOSTS   ADDRESS                                            PORTS   AGE
ui     alb     *       k8s-ui-ui-1268651632.us-west-2.elb.amazonaws.com   80      15s
The ALB will take several minutes to provision and register its targets so take some time to take a closer look at the ALB provisioned for this Ingress to see how its configured:
~$aws elbv2 describe-load-balancers --query 'LoadBalancers[?contains(LoadBalancerName, `k8s-ui-ui`) == `true`]'
[
    {
        "LoadBalancerArn": "arn:aws:elasticloadbalancing:us-west-2:1234567890:loadbalancer/app/k8s-ui-ui-cb8129ddff/f62a7bc03db28e7c",
        "DNSName": "k8s-ui-ui-cb8129ddff-1888909706.us-west-2.elb.amazonaws.com",
        "CanonicalHostedZoneId": "Z1H1FL5HABSF5",
        "CreatedTime": "2022-09-30T03:40:00.950000+00:00",
        "LoadBalancerName": "k8s-ui-ui-cb8129ddff",
        "Scheme": "internet-facing",
        "VpcId": "vpc-0851f873025a2ece5",
        "State": {
            "Code": "active"
        },
        "Type": "application",
        "AvailabilityZones": [
            {
                "ZoneName": "us-west-2b",
                "SubnetId": "subnet-00415f527bbbd999b",
                "LoadBalancerAddresses": []
            },
            {
                "ZoneName": "us-west-2a",
                "SubnetId": "subnet-0264d4b9985bd8691",
                "LoadBalancerAddresses": []
            },
            {
                "ZoneName": "us-west-2c",
                "SubnetId": "subnet-05cda6deed7f3da65",
                "LoadBalancerAddresses": []
            }
        ],
        "SecurityGroups": [
            "sg-0f8e704ee37512eb2",
            "sg-02af06ec605ef8777"
        ],
        "IpAddressType": "ipv4"
    }
]
What does this tell us?
  • The ALB is accessible over the public internet
  • It uses the public subnets in our VPC
Inspect the targets in the target group that was created by the controller:
~$ALB_ARN=$(aws elbv2 describe-load-balancers --query 'LoadBalancers[?contains(LoadBalancerName, `k8s-ui-ui`) == `true`].LoadBalancerArn' | jq -r '.[0]')
~$TARGET_GROUP_ARN=$(aws elbv2 describe-target-groups --load-balancer-arn $ALB_ARN | jq -r '.TargetGroups[0].TargetGroupArn')
~$aws elbv2 describe-target-health --target-group-arn $TARGET_GROUP_ARN
{
    "TargetHealthDescriptions": [
        {
            "Target": {
                "Id": "10.42.180.183",
                "Port": 8080,
                "AvailabilityZone": "us-west-2c"
            },
            "HealthCheckPort": "8080",
            "TargetHealth": {
                "State": "healthy"
            }
        }
    ]
}
Since we specified using IP mode in our Ingress object, the target is registered using the IP address of the ui pod and the port on which it serves traffic.
You can also inspect the ALB and its target groups in the console by clicking this link:
https://console.aws.amazon.com/ec2/home#LoadBalancers:tag:ingress.k8s.aws/stack=ui/ui;sort=loadBalancerName
Get the URL from the Ingress resource:
~$kubectl get ingress -n ui ui -o jsonpath="{.status.loadBalancer.ingress[*].hostname}{'\n'}"
k8s-ui-uinlb-a9797f0f61.elb.us-west-2.amazonaws.com
To wait until the load balancer has finished provisioning you can run this command:
~$wait-for-lb $(kubectl get ingress -n ui ui -o jsonpath="{.status.loadBalancer.ingress[*].hostname}{'\n'}")

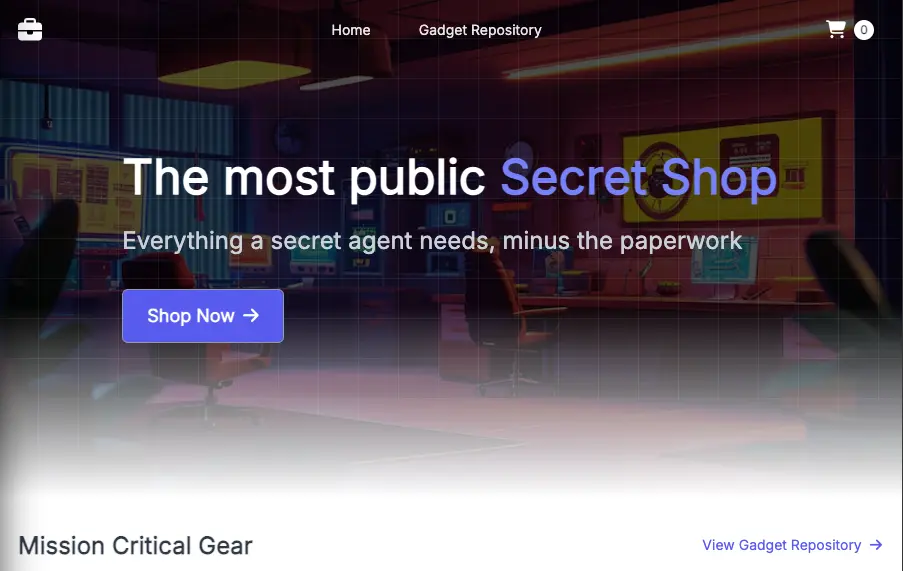

And access it in your web browser. You will see the UI from the web store displayed and will be able to navigate around the site as a user.
http://k8s-ui-ui-a9797f0f61.elb.us-west-2.amazonaws.com
