EFS CSI Driver

Before we dive into this section, make sure to familiarized yourself with the Kubernetes storage objects (volumes, persistent volumes (PV), persistent volume claim (PVC), dynamic provisioning and ephemeral storage) that were introduced on the Storage main section.

The Amazon Elastic File System Container Storage Interface (CSI) Driver helps you run stateful containerized applications. Amazon EFS Container Storage Interface (CSI) driver provide a CSI interface that allows Kubernetes clusters running on AWS to manage the lifecycle of Amazon EFS file systems.

In order to utilize Amazon EFS file system with dynamic provisioning on our EKS cluster, we need to confirm that we have the EFS CSI Driver installed. The Amazon Elastic File System Container Storage Interface (CSI) Driver implements the CSI specification for container orchestrators to manage the lifecycle of Amazon EFS file systems.

To improve security and reduce the amount of work, you can manage the Amazon EFS CSI driver as an Amazon EKS add-on. The IAM role needed by the add-on was created for us so we can go ahead and install the add-on:

~$aws eks create-addon --cluster-name $EKS_CLUSTER_NAME --addon-name aws-efs-csi-driver \

--service-account-role-arn $EFS_CSI_ADDON_ROLE

~$aws eks wait addon-active --cluster-name $EKS_CLUSTER_NAME --addon-name aws-efs-csi-driver

Now we can take a look at what has been created in our EKS cluster by the addon. For example, a DaemonSet will be running a pod on each node in our cluster:

~$kubectl get daemonset efs-csi-node -n kube-system

NAME           DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR                 AGE

efs-csi-node   3         3         3       3            3           kubernetes.io/os=linux        47s

The EFS CSI driver supports dynamic and static provisioning. Currently dynamic provisioning creates an access point for each PersistentVolume. This mean an AWS EFS file system has to be created manually on AWS first and should be provided as an input to the StorageClass parameter. For static provisioning, AWS EFS file system needs to be created manually on AWS first. After that it can be mounted inside a container as a volume using the driver.

We have provisioned an EFS file system, mount targets and the required security group pre-provisioned with an inbound rule that allows inbound NFS traffic for your Amazon EFS mount points. Let's retrieve some information about it that will be used later:

~$export EFS_ID=$(aws efs describe-file-systems --query "FileSystems[?Name=='$EKS_CLUSTER_NAME-efs-assets'] | [0].FileSystemId" --output text)

~$echo $EFS_ID

fs-061cb5c5ed841a6b0

Now, we'll need to create a StorageClass(https://kubernetes.io/docs/concepts/storage/storage-classes/) object configured to use the pre-provisioned EFS file system as part of this workshop infrastructure and use EFS Access points in provisioning mode.

We'll be using Kustomize to create for us the storage class and to ingest the environment variable EFS_ID in the parameter filesystemid value in the configuration of the storage class object:

~/environment/eks-workshop/modules/fundamentals/storage/efs/storageclass/efsstorageclass.yaml
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: efs-sc
provisioner: efs.csi.aws.com
parameters:
  provisioningMode: efs-ap
  fileSystemId: ${EFS_ID}
  directoryPerms: "700"

Let's apply this kustomization:

~$kubectl kustomize ~/environment/eks-workshop/modules/fundamentals/storage/efs/storageclass \

| envsubst | kubectl apply -f-

storageclass.storage.k8s.io/efs-sc created

Now we'll get and describe the StorageClass using the below commands. Notice that the provisioner used is the EFS CSI driver and the provisioning mode is EFS access point and ID of the file system as exported in the EFS_ID environment variable.

~$kubectl get storageclass

NAME            PROVISIONER             RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE

efs-sc          efs.csi.aws.com         Delete          Immediate              false                  8m29s

~$kubectl describe sc efs-sc

Name:            efs-sc

IsDefaultClass:  No

Annotations:     kubectl.kubernetes.io/last-applied-configuration={"apiVersion":"storage.k8s.io/v1","kind":"StorageClass","metadata":{"annotations":{},"name":"efs-sc"},"parameters":{"directoryPerms":"700","fileSystemId":"fs-061cb5c5ed841a6b0","provisioningMode":"efs-ap"},"provisioner":"efs.csi.aws.com"}

Provisioner:           efs.csi.aws.com

Parameters:            directoryPerms=700,fileSystemId=fs-061cb5c5ed841a6b0,provisioningMode=efs-ap

AllowVolumeExpansion:  <unset>

MountOptions:          <none>

ReclaimPolicy:         Delete

VolumeBindingMode:     Immediate

Events:                <none>

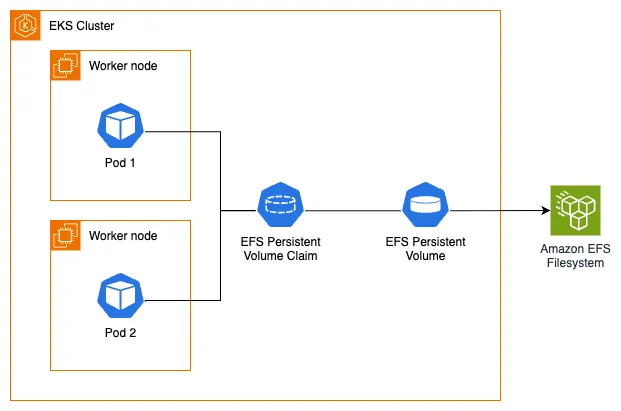

Now that we have a better understanding of EKS StorageClass and EFS CSI driver. On the next page, we'll focus on modifying the asset microservice to leverage the EFS StorageClass using Kubernetes dynamic volume provisioning and a PersistentVolume to store the product images.
