FSx for Lustre CSI Driver

Before diving into this section, you should be familiar with the Kubernetes storage objects (volumes, persistent volumes (PV), persistent volume claims (PVC), dynamic provisioning and ephemeral storage) that were introduced in the main Storage section.

The Amazon FSx for Lustre Container Storage Interface (CSI) Driver provides a CSI interface that allows Amazon EKS clusters to manage the lifecycle of Amazon FSx for Lustre file systems. This enables you to run stateful containerized applications that require high-performance parallel file storage.

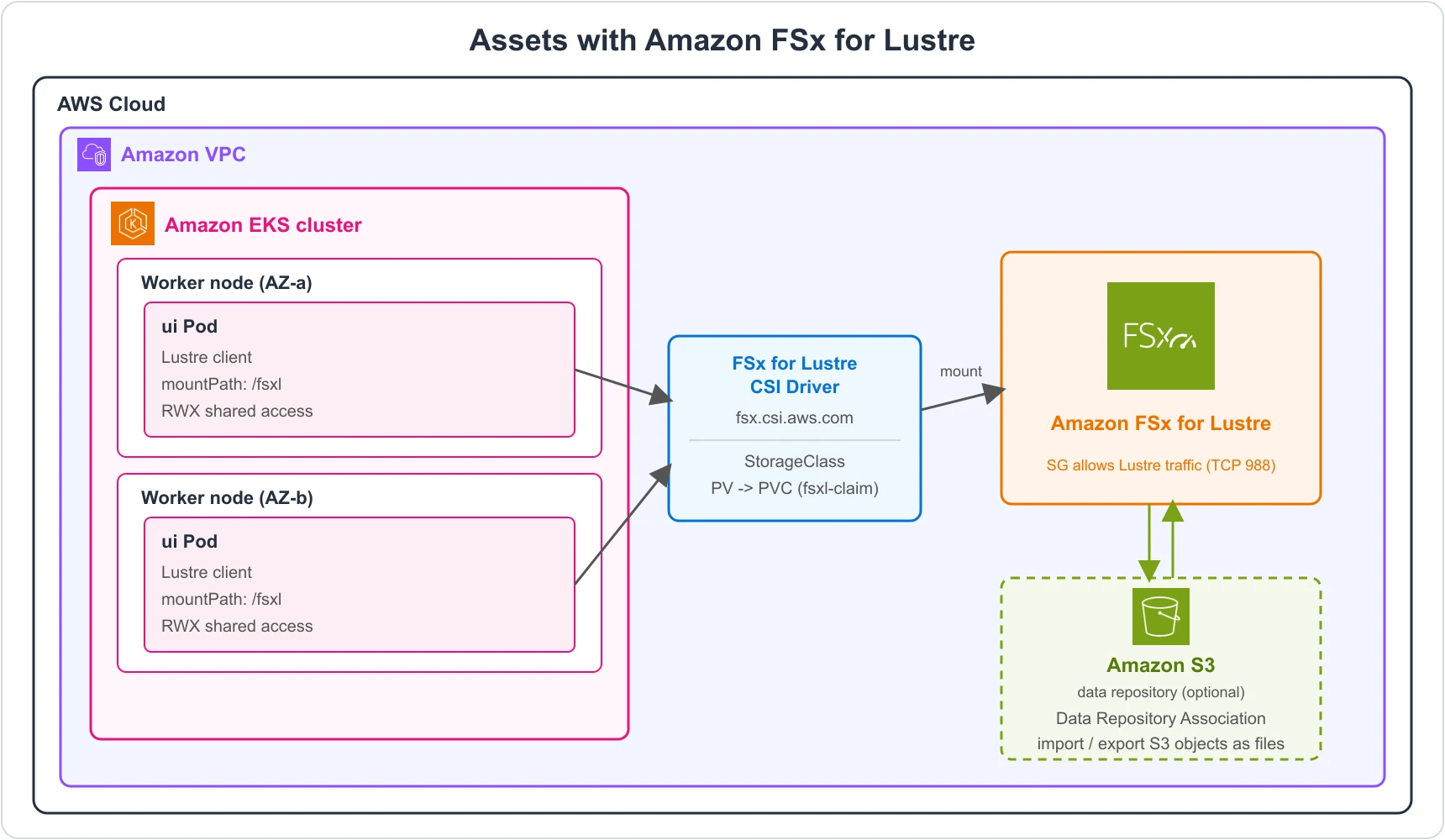

The following architecture diagram illustrates how we will use FSx for Lustre as persistent storage for our EKS pods:

Assets with FSx for Lustre

To utilize Amazon FSx for Lustre on our EKS cluster, we need to install the FSx for Lustre CSI Driver. The driver implements the CSI specification which allows container orchestrators to manage Amazon FSx for Lustre file systems throughout their lifecycle.

As part of the lab preparation, an IAM role has already been created for the CSI driver to call the appropriate AWS APIs.

We'll install the FSx for Lustre CSI driver as an EKS add-on:

~$aws eks create-addon --cluster-name $EKS_CLUSTER_NAME \
--addon-name aws-fsx-csi-driver \
--service-account-role-arn $FSXL_IAM_ROLE \
--resolve-conflicts OVERWRITE
~$aws eks wait addon-active --cluster-name $EKS_CLUSTER_NAME \
    --addon-name aws-fsx-csi-driver


Let's verify the driver is running in our EKS cluster:


~$kubectl get daemonset fsx-csi-node -n kube-system
NAME           DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR            AGE
fsx-csi-node   3         3         3       3            3           kubernetes.io/os=linux   52s


The FSx for Lustre CSI driver supports both dynamic and static provisioning. With dynamic provisioning, the driver creates a new FSx for Lustre file system on demand when a PersistentVolumeClaim (PVC) is created. With static provisioning, a pre-existing FSx for Lustre file system is associated with a PersistentVolume (PV) for consumption within Kubernetes. In this lab, we'll use static provisioning with a file system that has been pre-provisioned as part of the lab setup.


An FSx for Lustre file system has been pre-provisioned for us as part of the lab setup, along with the required security group that allows Lustre traffic. Let's get its ID which we'll need later:


~$echo $FSXL_FS_ID
fs-0123456789abcdef0


We also need the DNS name and mount name of the file system for our StorageClass:


~$export FSXL_DNS_NAME=$(aws fsx describe-file-systems --file-system-ids $FSXL_FS_ID --query "FileSystems[0].DNSName" --output text)
~$export FSXL_MOUNT_NAME=$(aws fsx describe-file-systems --file-system-ids $FSXL_FS_ID --query "FileSystems[0].LustreConfiguration.MountName" --output text)
~$echo "DNS Name: $FSXL_DNS_NAME"
~$echo "Mount Name: $FSXL_MOUNT_NAME"


Next, we'll create a StorageClass that uses static provisioning with our pre-created FSx for Lustre file system.


Let's examine the fsxlstorageclass.yaml file:


~/environment/eks-workshop/modules/fundamentals/storage/fsxl/storageclass/fsxlstorageclass.yaml
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: fsx-lustre-sc
provisioner: fsx.csi.aws.com
parameters:
  subnetId: "$FSXL_SUBNET_ID"
  securityGroupIds: "$FSXL_SG"
  deploymentType: PERSISTENT_2
  perUnitStorageThroughput: "125"
  dataCompressionType: "LZ4"
reclaimPolicy: Delete
volumeBindingMode: Immediate
A
Set the provisioner parameter to fsx.csi.aws.com for the FSx for Lustre CSI provisioner
B
Assign the subnet ID where the file system resides
C
Assign the security group ID for Lustre traffic




Apply the kustomization:


~$kubectl kustomize ~/environment/eks-workshop/modules/fundamentals/storage/fsxl/storageclass \
  | envsubst | kubectl apply -f-
storageclass.storage.k8s.io/fsx-lustre-sc created


Let's examine the StorageClass:


~$kubectl get storageclass fsx-lustre-sc
NAME            PROVISIONER     RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
fsx-lustre-sc   fsx.csi.aws.com   Delete          Immediate           false                  10s


Now we'll also create a PersistentVolume and PersistentVolumeClaim that reference our pre-provisioned FSx for Lustre file system:


~$kubectl kustomize ~/environment/eks-workshop/modules/fundamentals/storage/fsxl/pv \
  | envsubst | kubectl apply -f-
persistentvolume/fsxl-pv created
persistentvolumeclaim/fsxl-claim created


Let's verify the PVC is bound:


~$kubectl get pvc -n ui fsxl-claim
NAME         STATUS   VOLUME    CAPACITY   ACCESS MODES   STORAGECLASS    AGE
fsxl-claim   Bound    fsxl-pv   1200Gi     RWX            fsx-lustre-sc   10s


Now that we understand the FSx for Lustre StorageClass and how the FSx for Lustre CSI driver works, we're ready to proceed to the next step where we'll modify the UI component to use the FSx for Lustre volume for storing product images.
