Configuring control plane logs

Enabling EKS control plane logs is done on a per-cluster basis through the EKS API. This will often be configured using Terraform or CloudFormation, but in this lab we'll use the AWS CLI to enable the functionality:

~$aws eks update-cluster-config \

--region $AWS_REGION \

--name $EKS_CLUSTER_NAME \

--logging '{"clusterLogging":[{"types":["api","audit","authenticator","controllerManager","scheduler"],"enabled":true}]}'

{

    "update": {

        "id": "6d73515c-f5e7-4288-9e55-480e9c6dd084",

        "status": "InProgress",

        "type": "LoggingUpdate",

        "params": [

            {

                "type": "ClusterLogging",

                "value": "{\"clusterLogging\":[{\"types\":[\"api\",\"audit\",\"authenticator\",\"controllerManager\",\"scheduler\"],\"enabled\":true}]}"

            }

        ],

        "createdAt": "2023-05-25T19:33:16.622000+00:00",

        "errors": []

    }

}

~$sleep 30

~$aws eks wait cluster-active --name $EKS_CLUSTER_NAME

As you can see we can enable each of the cluster log types individually, and in this lab we're enabling everything.

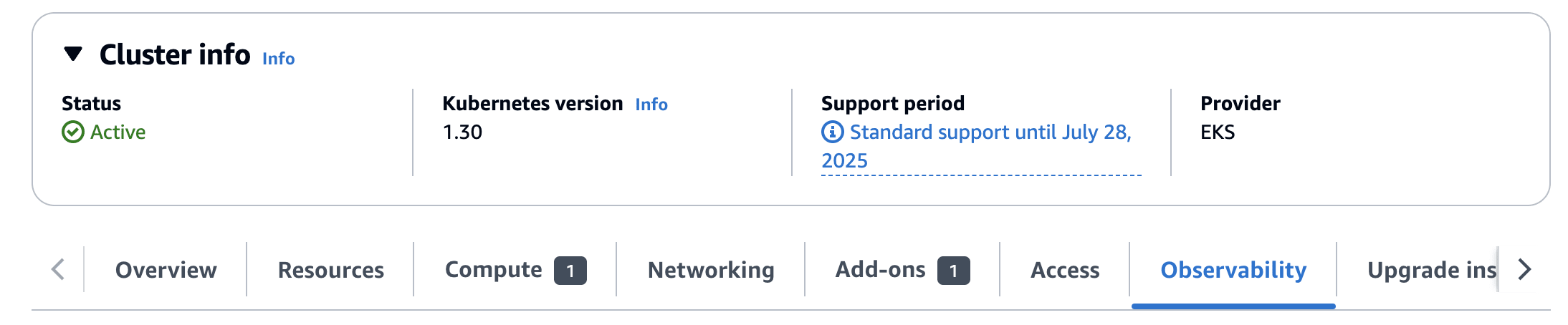

Let's take a look this configuration in the EKS console:

https://console.aws.amazon.com/eks/home#/clusters/eks-workshop?selectedTab=cluster-logging-tab

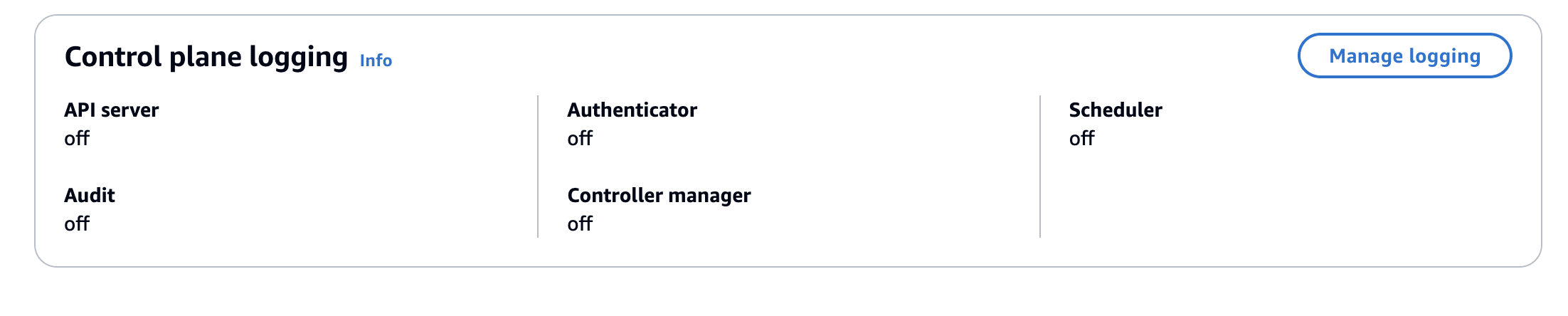

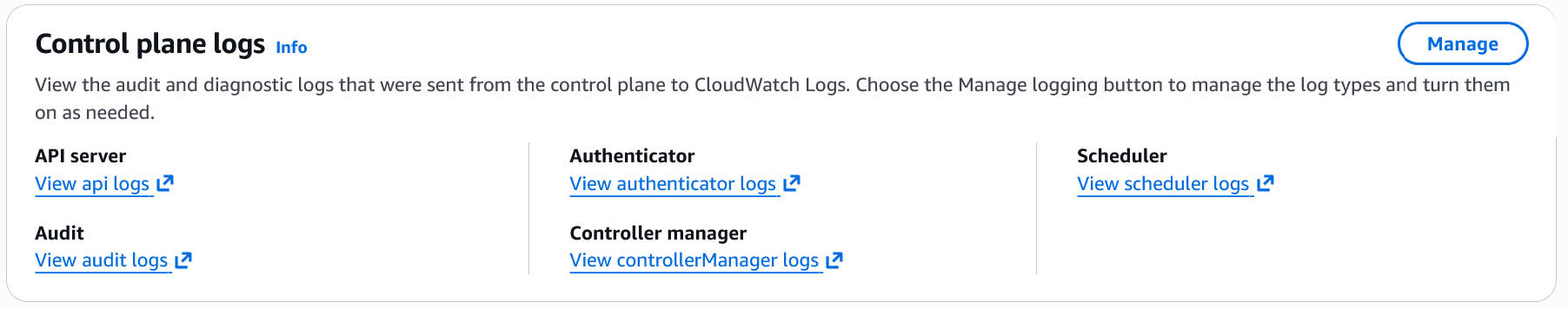

The Logging tab shows the current configuration for control plane logs for the cluster:

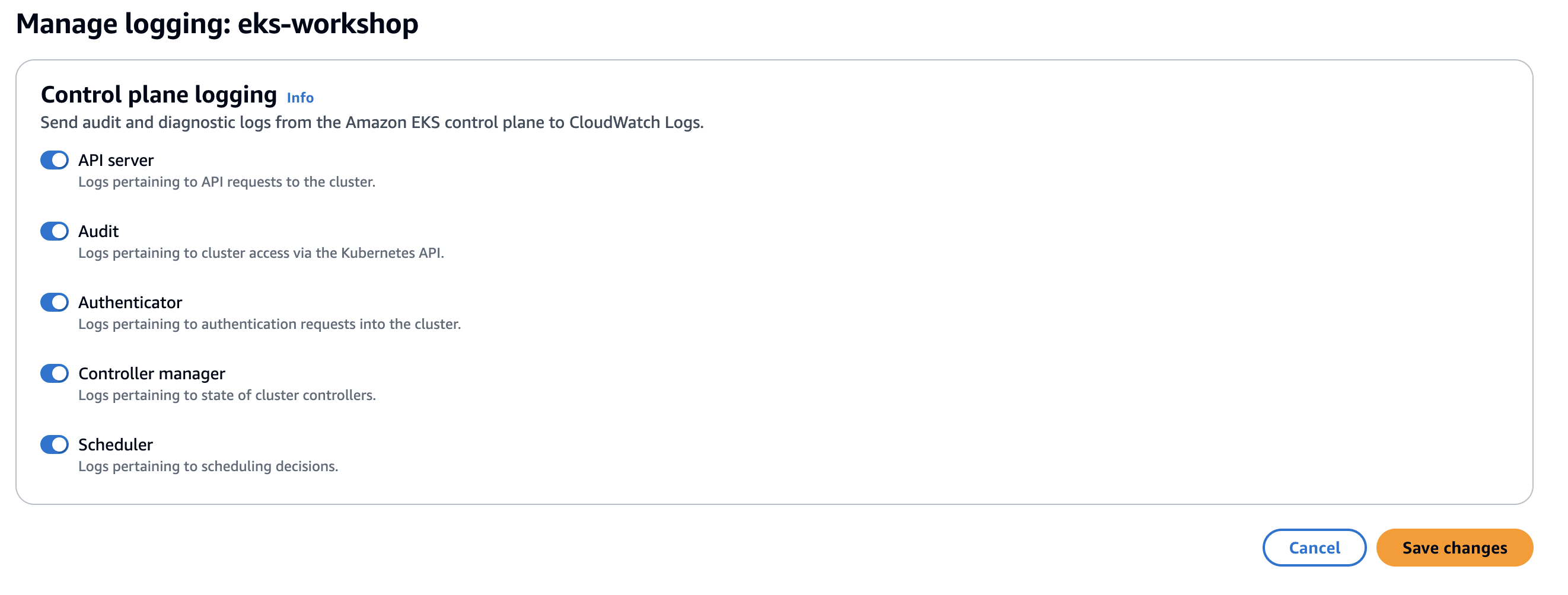

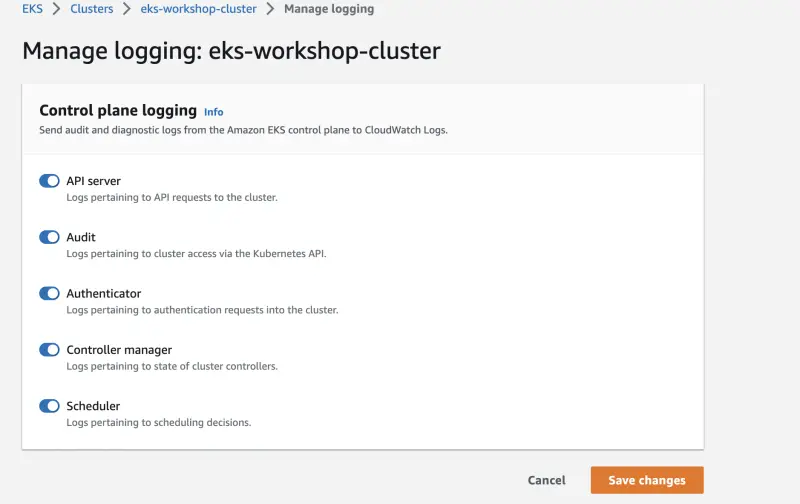

You can alter the logging configuration by clicking the Manage button:
