Using Fluent Bit

For Kubernetes cluster components that run in pods, these write to files inside the /var/log directory, bypassing the default logging mechanism. We can implement pod-level logging by deploying a node-level logging agent as a DaemonSet on each node, such as Fluent Bit.

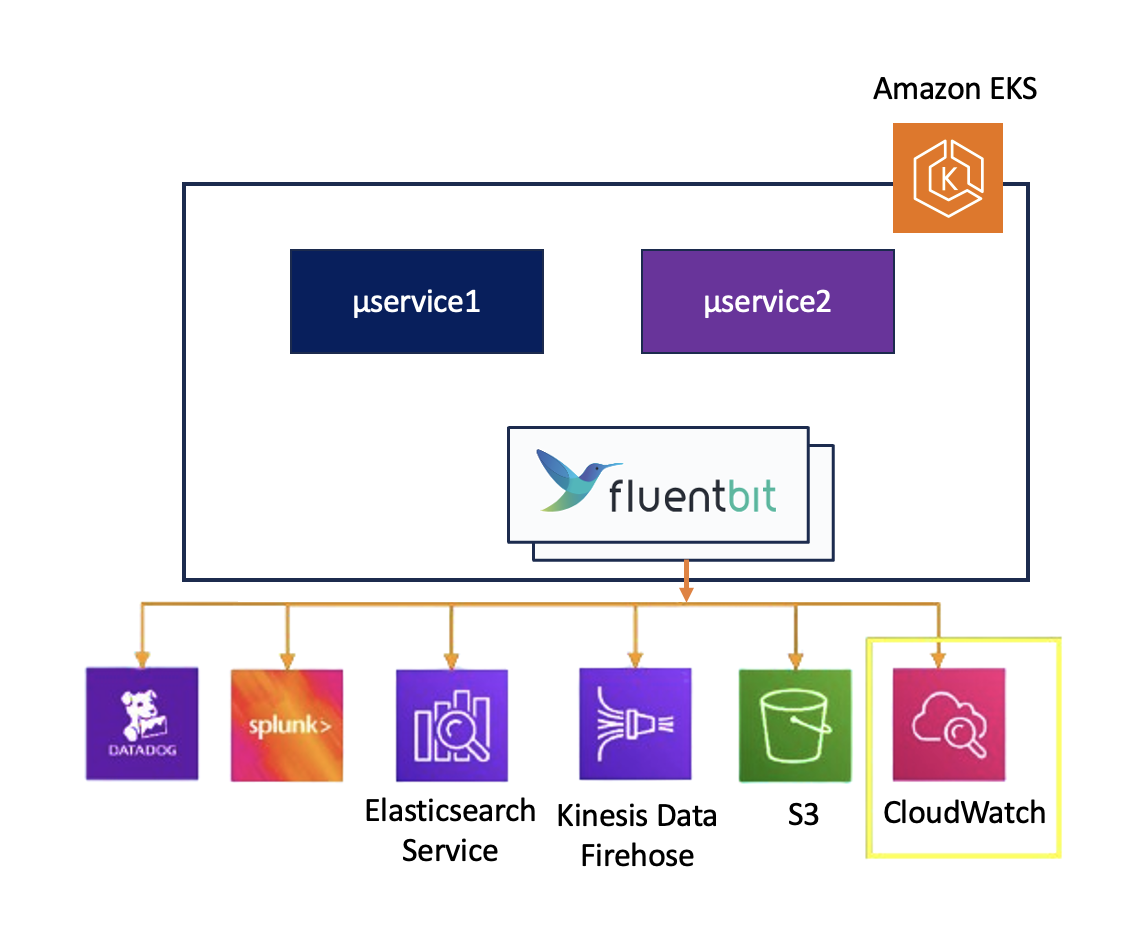

Fluent Bit is a lightweight log processor and forwarder that allows you to collect data and logs from different sources, enrich them with filters and send them to multiple destinations like CloudWatch, Kinesis Data Firehose, Kinesis Data Streams and Amazon OpenSearch Service.

AWS provides a Fluent Bit image with plugins for both CloudWatch Logs and Kinesis Data Firehose. The AWS for Fluent Bit image is available on the Amazon ECR Public Gallery.

In the following section, you will see how to validate Fluent Bit agent is running as a daemonSet to send the containers / pods logs to CloudWatch Logs.

First, we can validate the resources created for Fluent Bit by entering the following command. Each node should have one pod:

~$kubectl get all -n aws-for-fluent-bit

NAME                           READY   STATUS    RESTARTS   AGE

pod/aws-for-fluent-bit-vfsbe   1/1     Running   0          99m

pod/aws-for-fluent-bit-kmvnk   1/1     Running   0          99m

pod/aws-for-fluent-bit-rxhs7   1/1     Running   0          100m

NAME                                DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE

daemonset.apps/aws-for-fluent-bit   2         2         2       2            2           <none>          104m

The ConfigMap for aws-for-fluent-bit is configured to stream the contents of files in the directory /var/log/containers/*.log from each node to the CloudWatch log group /eks-workshop/worker-fluentbit-logs:

~$kubectl describe configmaps -n aws-for-fluent-bit

Name:         aws-for-fluent-bit

Namespace:    aws-for-fluent-bit

Labels:       app.kubernetes.io/instance=aws-for-fluent-bit

              app.kubernetes.io/managed-by=Helm

              app.kubernetes.io/name=aws-for-fluent-bit

              app.kubernetes.io/version=2.21.5

              helm.sh/chart=aws-for-fluent-bit-0.1.18

Annotations:  meta.helm.sh/release-name: aws-for-fluent-bit

              meta.helm.sh/release-namespace: aws-for-fluent-bit

Data

====

fluent-bit.conf:

----

[SERVICE]

    Parsers_File /fluent-bit/parsers/parsers.conf

[INPUT]

    Name              tail

    Tag               kube.*

    Path              /var/log/containers/*.log

    DB                /var/log/flb_kube.db

    Parser            docker

    Docker_Mode       On

    Mem_Buf_Limit     5MB

    Skip_Long_Lines   On

    Refresh_Interval  10

[FILTER]

    Name                kubernetes

    Match               kube.*

    Kube_URL            https://kubernetes.default.svc.cluster.local:443

    Merge_Log           On

    Merge_Log_Key       data

    Keep_Log            On

    K8S-Logging.Parser  On

    K8S-Logging.Exclude On

[OUTPUT]

    Name                  cloudwatch

    Match                 *

    region                us-east-1

    log_group_name        /eks-workshop/worker-fluentbit-logs

    log_stream_prefix     fluentbit-

    auto_create_group     true

...........
