Understanding Cluster Access Management API

Whenever you create an Amazon EKS Cluster, you need to provide access to teams or users that are consuming and managing resources on the platform. Different teams require different levels of access - platform engineers may need cluster-wide access to manage resources, deploy add-ons or troubleshoot issues, while developers might only need read-only access or admin access restricted to the Namespace where their applications reside.

In either case, you need a solution that provides centralized Authentication (AuthN) for identities or principals tied to those teams or users to control their access to Amazon EKS clusters. This solution should integrate with Kubernetes Role-Based Access Controls (RBAC) to grant specific Authorization (AuthZ) levels required by each team in a more granular way, following the principle of least privilege.

The Cluster Access Management API is a feature of the AWS API available for Amazon EKS v1.23 and later clusters (both new and existing). It simplifies identity mapping between AWS IAM and Kubernetes RBAC, eliminating the need to switch between AWS and Kubernetes APIs for access management and reducing operational overhead. The tool also enables cluster administrators to revoke or refine cluster-admin permissions automatically granted to the AWS IAM principal used to create the cluster.

The Cluster Access Management API relies on two basic concepts:

  • Access Entries (Authentication): Cluster identities directly linked to AWS IAM principals (users or roles) allowed to authenticate to an Amazon EKS cluster. Access entries are bound to clusters, so unless the cluster is created and set to use the Cluster Access Management API as an authentication method, no Access Entries will exist for that cluster.
  • Access Policies (Authorization): Amazon EKS specific policies that provide authorization for an Access Entry to perform actions in the Amazon EKS cluster. Access Policies are account-based resources, which means they exist in your AWS Account even if no cluster is deployed. Currently, Amazon EKS supports only a few predefined and AWS managed policies. Access policies are not IAM entities but are defined and managed by Amazon EKS based on default Kubernetes cluster roles, and are mapped as follows:
Access PolicyRBACDescription
AmazonEKSClusterAdminPolicycluster-adminGrants administrator access to a cluster
AmazonEKSAdminPolicyadminGrants most permissions to resources, usually scoped to a Namespace
AmazonEKSAdminViewPolicyviewGrants access to list/view all resources in a cluster, including Secrets (a cluster-wide scoped view policy)
AmazonEKSEditPolicyeditGrants access to edit most Kubernetes resources, usually scoped to a Namespace
AmazonEKSViewPolicyviewGrants access to list/view most Kubernetes resources, usually scoped to a Namespace
AmazonEMRJobPolicyN/ACustom access to run Amazon EMR Jobs on Amazon EKS Clusters

To check the list of available access policies in your account, run the following command:

~$aws eks list-access-policies

{
    "accessPolicies": [
        {
            "name": "AmazonEKSAdminPolicy",
            "arn": "arn:aws:eks::aws:cluster-access-policy/AmazonEKSAdminPolicy"
        },
        {
            "name": "AmazonEKSAdminViewPolicy",
            "arn": "arn:aws:eks::aws:cluster-access-policy/AmazonEKSAdminViewPolicy"
        },
        {
            "name": "AmazonEKSClusterAdminPolicy",
            "arn": "arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy"
        },
        {
            "name": "AmazonEKSEditPolicy",
            "arn": "arn:aws:eks::aws:cluster-access-policy/AmazonEKSEditPolicy"
        },
        {
            "name": "AmazonEKSViewPolicy",
            "arn": "arn:aws:eks::aws:cluster-access-policy/AmazonEKSViewPolicy"
        },
        {
            "name": "AmazonEMRJobPolicy",
            "arn": "arn:aws:eks::aws:cluster-access-policy/AmazonEMRJobPolicy"
        }
    ]
}


As explained earlier, the Cluster Access Management API allows a combination of upstream RBAC with access policies supporting allow and pass (but not deny) on Kubernetes authorization decisions regarding API server requests. A deny decision will happen when both the upstream RBAC and Amazon EKS authorizers can't determine the outcome of a request evaluation.

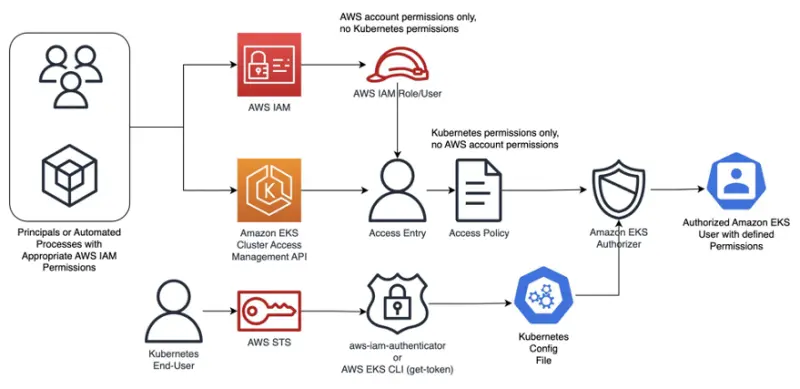

The diagram below illustrates the workflow followed by the Cluster Access Management API to provide authentication and authorization for AWS IAM principals to Amazon EKS Clusters.


CAM Auth Workflow
