Application Metrics

In this section we'll look at gaining insight in to metrics exposed by our workloads. Some examples of these could be:

• System metrics such as Java heap metrics or database connection pool status
• Application metrics related to business KPIs

Let's look at how to ingest application metrics using AWS Distro for OpenTelemetry and visualize the metrics using Grafana.

Each of the components in this workshop have been instrumented to provide Prometheus metrics using libraries relevant to the particular programming language or framework. We can look at an example of these metrics from the orders service like so:

~$kubectl -n orders exec deployment/orders -- curl http://localhost:8080/actuator/prometheus

[...]

# HELP jdbc_connections_idle Number of established but idle connections.

# TYPE jdbc_connections_idle gauge

jdbc_connections_idle{name="reader",} 10.0

jdbc_connections_idle{name="writer",} 10.0

[...]

# HELP watch_orders_total The number of orders placed

# TYPE watch_orders_total counter

watch_orders_total{productId="510a0d7e-8e83-4193-b483-e27e09ddc34d",} 2.0

watch_orders_total{productId="808a2de1-1aaa-4c25-a9b9-6612e8f29a38",} 1.0

watch_orders_total{productId="*",} 3.0

watch_orders_total{productId="6d62d909-f957-430e-8689-b5129c0bb75e",} 1.0

The output from this command is verbose so the example above has been pruned to show:

• System metric - How many JDBC connections are idle
• Application metric - How many orders have been placed through the retail store

You can execute similar requests to other components, for example the checkout service:

~$kubectl -n checkout exec deployment/checkout -- curl http://localhost:8080/metrics

[...]

# HELP nodejs_heap_size_total_bytes Process heap size from Node.js in bytes.

# TYPE nodejs_heap_size_total_bytes gauge

nodejs_heap_size_total_bytes 48668672

[...]

In this lab we'll leverage ADOT to ingest the metrics for all the components and explore a dashboard to show the number of orders that have been placed. Let's take a look at the OpenTelemetry configuration used to scrape metrics from the application pods, specifically this section:

~$kubectl -n other get opentelemetrycollector adot -o jsonpath='{.spec.config}' \

| yq '.receivers.prometheus.config.scrape_configs[2]'

job_name: 'kubernetes-pods'

honor_labels: true

kubernetes_sd_configs:

  - role: pod

relabel_configs:

  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]

    action: keep

    regex: true

  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape_slow]

    action: drop

    regex: true

  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scheme]

    action: replace

    regex: (https?)

    target_label: __scheme__

  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]

    action: replace

    target_label: __metrics_path__

    regex: (.+)

  - action: labelmap

    regex: __meta_kubernetes_pod_annotation_prometheus_io_param_(.+)

    replacement: __param_$1

  - action: labelmap

    regex: __meta_kubernetes_pod_label_(.+)

  - source_labels: [__meta_kubernetes_namespace]

    action: replace

    target_label: namespace

  - source_labels: [__meta_kubernetes_pod_name]

    action: replace

    target_label: pod

  - source_labels: [__meta_kubernetes_pod_phase]

    regex: Pending|Succeeded|Failed|Completed

    action: drop

This configuration leverages the Prometheus Kubernetes service discovery mechanism to automatically discover all pods with specific annotations. This particular configuration will discover any pods with the annotation prometheus.io/scrape, and will enrich metrics it scrapes with Kubernetes metadata such as the namespace and pod name.

We can check the annotations on the order component pods:

~$kubectl get -o yaml -n orders deployment/orders | yq '.spec.template.metadata.annotations'

prometheus.io/path: /actuator/prometheus

prometheus.io/port: "8080"

prometheus.io/scrape: "true"

As we saw in the section regarding cluster metrics, these pod metrics will also be sent to AMP using the same OpenTelemetry exporter.

Next use the below script to run a load generator which will place orders through the store and generate application metrics:

~$cat <<EOF | kubectl apply -f -

apiVersion: v1

kind: Pod

metadata:

name: load-generator

namespace: other

spec:

containers:

- name: artillery

image: artilleryio/artillery:2.0.0-31

args:

- "run"

- "-t"

- "http://ui.ui.svc"

- "/scripts/scenario.yml"

volumeMounts:

- name: scripts

mountPath: /scripts

initContainers:

- name: setup

image: public.ecr.aws/aws-containers/retail-store-sample-utils:load-gen.0.4.0

command:

- bash

args:

- -c

- "cp /artillery/* /scripts"

volumeMounts:

- name: scripts

mountPath: "/scripts"

volumes:

- name: scripts

emptyDir: {}

EOF

Open the Grafana as we did in the previous section:

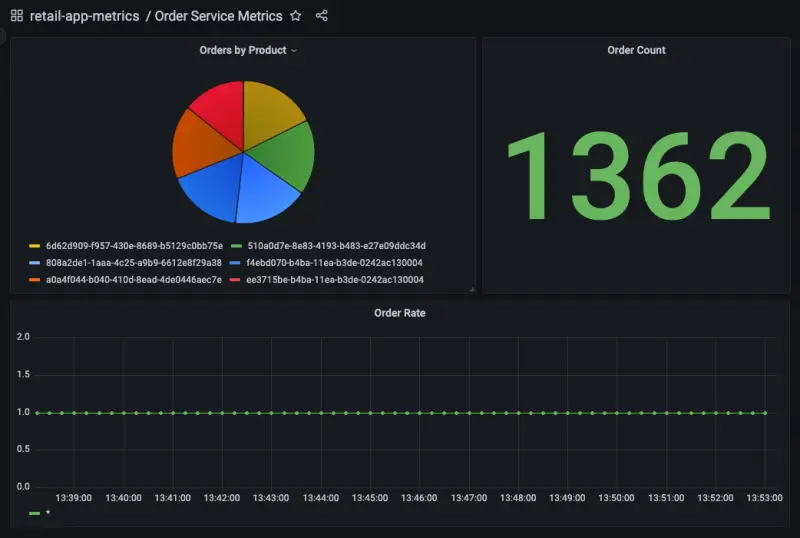

Go to the dashboard page and click on the dashboard Order Service Metrics to review the panels within the dashboard:

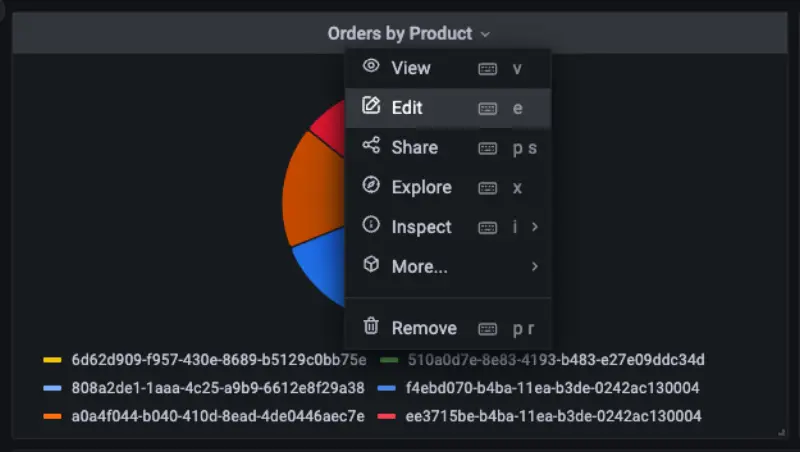

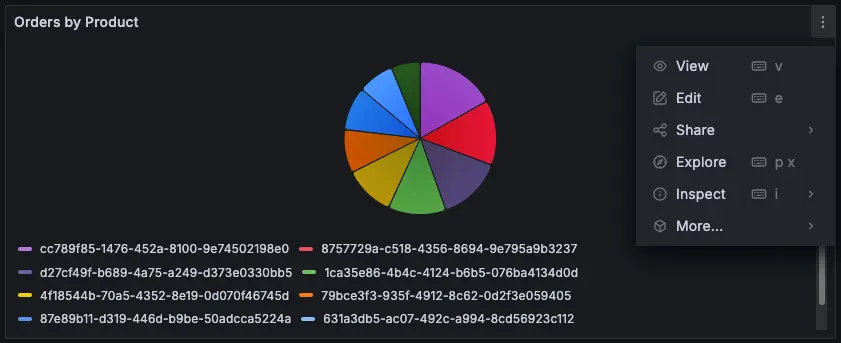

We can see how the dashboard was configured to query AMP by hovering over the title of the "Orders by Product" panel and clicking the "Edit" button:

The PromQL query used to create this panel is displayed at the bottom of the page:

In this case we are using the query:

sum by(productId) (watch_orders_total{productId!="*"})

Which is doing the following:

• Query for the metric watch_orders_total
• Ignore metrics with a productId value of *
• Sum these metrics and group them by productId

You can similarly explore the other panels to understand how they have been created.

Once you're satisfied with observing the metrics, you can stop the load generator using the below command.

~$kubectl delete pod load-generator -n other
